The 3.7 cm SK C/30 was the German Kriegsmarine's primary 3.7 cm (1.5 in) anti-aircraft gun during the Second World War. It was superseded by the fully automatic 3.7 cm FlaK 43 late in the war.
Description
The C/30 was a semi-automatic anti-aircraft gun (ie; after firing each round, the breech opened and the spent cartridge casing was automatically expelled, ready for the next round to be loaded), and it was hand-loaded one round at a time. This mechanism gave the weapon an effective, sustained, firing rate of 30 rounds per minute. Whilst not uncompetitive with contemporary and earlier designs of semi-automatic light gun, it was far inferior to the 120 rpm cyclic firing rate of its (slightly later-designed) wartime contemporary, the fully automatic Bofors 40 mm anti-aircraft gun. The C/30's muzzle velocity was, on the other hand, about 12-15% higher than the Bofors; this slightly eased the aiming. The SK C/30U gun was modified for use by submarines. All mountings were suitable for use against both air and soft surface targets.
Ship classes that carried the 3.7 cm SK C/30 include:
Mountings

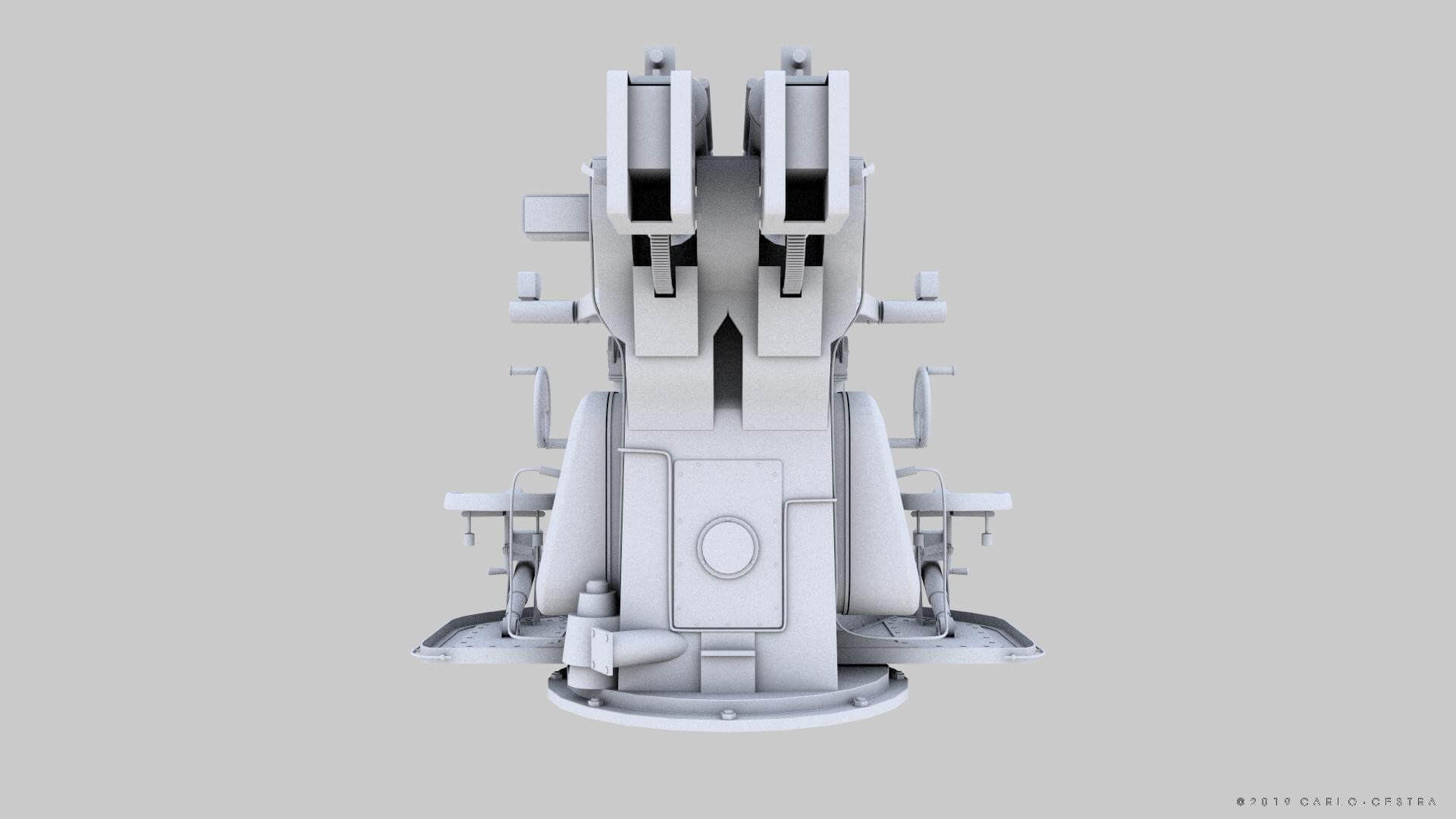

The Doppellafette C/30 (Dopp L C/30) was a twin mount with each gun in a separate cradle. It had a six-man crew on the mount itself plus additional ammunition handlers. The mounting was manually traversed and elevated and was gyro-stabilized up to a limit of 19.5° degrees to counteract the roll and pitch of the ship. Most German ships, fleet torpedo boat or larger, carried at least one Dopp L C/30 mounting. The Einheitslafette C/34 (Einh L C/34, universal mounting model 34) was a single gun mounted on a pedestal with a two-man crew. Some mounts were fitted with a 8-millimetre (0.31 in) gun shield. It was used on the smaller Kriegsmarine ships like the Schnellboot. A number were used on land to supplement the anti-aircraft defenses of ports. The Ubts L C/39 submarine mount used the SK C/30U gun. It was a simple pedestal mount with a two-man crew, one of whom trained the gun with the shoulder stirrup; the other used gears to elevate the gun.
Ammunition
The SK C/30 used two types of tracer rounds. The 3.7 cm Br Sprgr Patr 40 L/4.1 Lh 37M was a high-explosive round with an incendiary filling while the 3.7 cm Sprgr Patr 40 L/4.1 Lh 37 lacked the incendiary fill, but was otherwise identical. Tracers were available in red, yellow or white and were marked on the shell by a painted band of the appropriate color. A complete round weighed 1.78 kilograms (3.9 lb).
Comparison of anti-aircraft guns
Footnotes
Citations
References
- Campbell, John (2002). Naval Weapons of World War Two. London: Conway Maritime Press. ISBN 0-87021-459-4.
- Gander, Terry; Chamberlain, Peter (1979). Weapons of the Third Reich: An Encyclopedic Survey of All Small Arms, Artillery and Special Weapons of the German Land Forces 1939–1945. New York: Doubleday. ISBN 0-385-15090-3.
- Hogg, Ian V. (1997). German Artillery of World War Two (2nd corrected ed.). Mechanicsville, PA: Stackpole Books. ISBN 1-85367-480-X.
- Stehr, Werner (1999). Leichte und mittlere Artillerie auf deutschen Kriegsschiffen [Light and Medium Artillery on German Warships] (in German). Wölfersheim-Berstadt: Podzun-Pallas-Verlag. pp. 8–11. ISBN 3790906646.
